Bubbles alone do not establish that a refrigeration system needs more refrigerant. In a walk-in cooler with a liquid-line sight glass, ask the service technician to distinguish a refrigerant shortage from pressure loss or changing operating conditions before approving an addition. The useful question is what is happening to the liquid at that location, and why.
This discussion concerns a sight glass in the refrigerant liquid line, not an oil-level window on a compressor. It is a guide to understanding a service recommendation, not a charging procedure.
A bubbling window is an observation, not a measured shortage
Illustrative scenario: A cooler owner is shown bubbles in a sight glass and told the system needs refrigerant. Assume that is the only information available. The equipment model, refrigerant, operating conditions, measurements, and reason for the bubbles have not been established. No actual customer visit or repair outcome is being described.
The owner does not have to diagnose the system. A reasonable response is: “What other evidence supports low charge, and what have you checked upstream of this glass?” That gives the contractor room to explain the finding instead of turning one visible clue into a purchase decision.
How liquid can form bubbles without a shortage
Liquid refrigerant approaching its boiling condition has little margin before some becomes vapor. Subcooling describes that temperature margin at a given pressure. If the pressure falls along the liquid line, some liquid can flash into vapor even though refrigerant is present in the system.
Copeland's explanation of sight-glass bubbles identifies this situation near a receiver outlet or solenoid valve. Low charge can also cause bubbles; the appearance does not distinguish the two explanations by itself.
The consequence matters at the expansion valve, which meters refrigerant into the evaporator. Vapor arriving where liquid is expected can reduce the valve's effective capacity. Danfoss describes flash gas from liquid-line pressure loss and vertical rise even when the charge quantity is sufficient. More refrigerant is therefore not a substitute for checking liquid delivery.
Three details that change the interpretation
When do the bubbles appear?
Separate a brief observation immediately after startup from bubbling that continues during stable operation. Danfoss's compressor notes explain that startup bubbles can be normal. That does not mean persistent bubbles should be ignored, or that poor cooling becomes acceptable because the system has just started.
Also note whether bubbling coincides with a change in operation. Copeland's system-design manual describes temporary flashing when condensing pressure changes rapidly. Timing helps the technician choose what to investigate; it does not identify a failed control on its own.
Where is the glass?

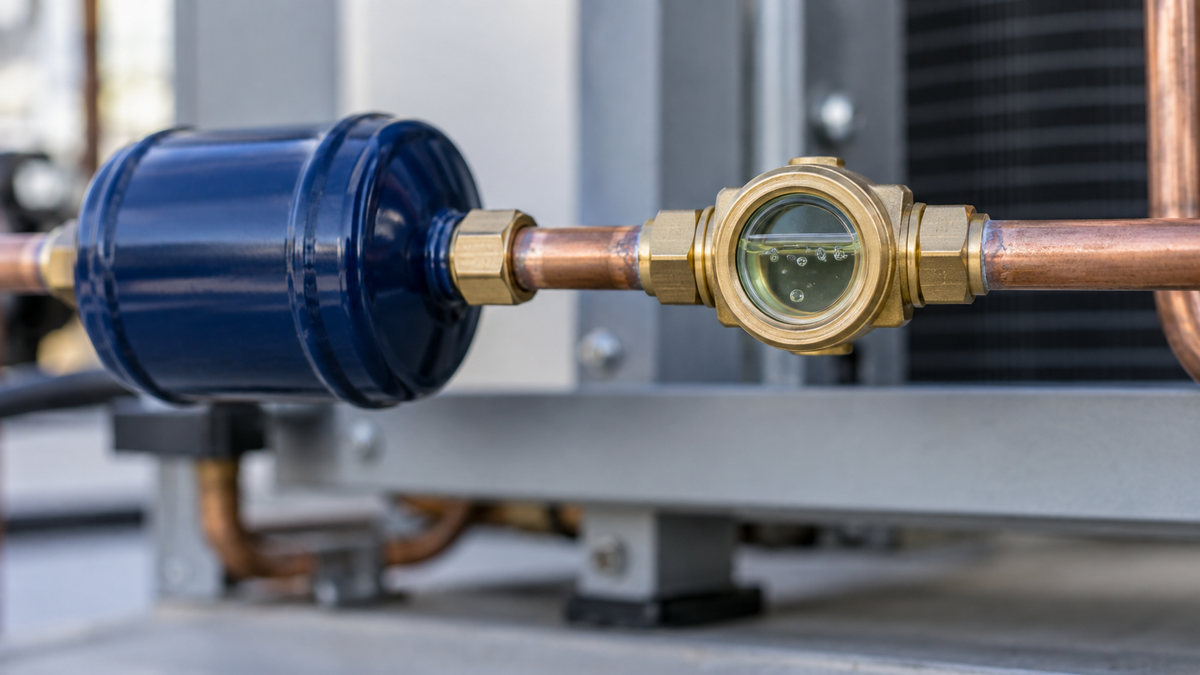

A glass downstream of a filter drier can show vapor associated with excessive pressure loss through that drier. A glass upstream cannot show a pressure drop that occurs later in the circuit. Danfoss's filter-drier notes explicitly distinguish these locations and caution against adding refrigerant based only on bubbles. Ask the technician to identify the component order; do not move or adjust anything yourself.
Is the concern bubbles or indicator color?
These are separate observations. Where fitted, the moisture indicator responds to moisture conditions; bubbles concern the state of the refrigerant passing the window. In the Danfoss indicator described in its filter-drier and sight-glass guidance, green and yellow indicate different moisture conditions. Have the contractor interpret the installed model's own indicator instructions. A moisture indication does not tell you how many pounds of refrigerant to add.
Match the proposed repair to the supporting evidence
A useful service explanation connects the suspected cause, the evidence, and the action. These are different branches, not a list of parts to replace:
- Suspected refrigerant shortage: Ask which equipment-specific checks support that conclusion beyond the glass, and whether a leak investigation is needed. The proposed refrigerant quantity should follow the manufacturer's service requirements and findings, not an estimate from bubble size or count.
- Suspected restriction or excessive liquid-line loss: Ask where the pressure loss was established and why the drier, valve, or piping is implicated. The repair direction is to address the confirmed restriction or design issue. Adding charge does not demonstrate that a blockage has been removed.
- Suspected operating transition: Ask whether the bubbles clear when conditions stabilize and whether cooling performance meets the equipment requirements. A recurring control-related problem needs its own explanation; an isolated startup observation does not justify an automatic top-off.
For blends, the contractor also needs the correct refrigerant temperature data. Our explanation of why refrigerant blends need the right temperature data provides that background. There is no single subcooling number in this article to apply to every receiver, refrigerant, or equipment design.
What to record, and what to ask for after service
From an accessible location, note when the bubbling was reported, whether the cooler was starting or already running, and whether its displayed temperature or alarms had changed. Share the equipment model and existing service records. Do not open guards, touch piping, connect gauges, or operate service valves to gather extra evidence.
If the refrigerant identity is uncertain, resolve that before approving any addition. See what to establish when the refrigerant is unknown. In the United States, refrigerant-circuit service can require EPA Section 608 technician certification; use a qualified refrigeration contractor for diagnosis and refrigerant handling.
Request a service record stating the cause found, the correction made, and the operating conditions used to verify it. Ask whether the original symptom was reassessed and cooling performance checked against the equipment requirements. If the evidence is still incomplete, the next authorized step can be further diagnosis rather than another cylinder. A clear window is useful information, but it should not be the entire acceptance test for the repair.
