A low-side gauge in the red after the compressor stops does not, by itself, prove an overcharge. Pressure changes when the system stops pumping, and a colored band intended for an operating test can be misleading at rest. Do not add or release refrigerant to make that stopped-system reading turn green. If cooling is poor, request a vehicle-specific diagnosis.
This explanation concerns conventional car AC with an engine-driven compressor. Hybrids and EVs with electric compressors need their own service information; a stopped engine does not necessarily mean their AC compressor is stopped.
Illustrative scenario: An owner reports that a low-side gauge points into the red after shutting the car down and wonders whether refrigerant should be removed. This is a hypothetical decision, not a customer service record. The vehicle, gauge, refrigerant, temperatures, actual charge and cooling performance are unknown. No fault or repair outcome has been established.
Why the low-side reading rises after shutdown
While the compressor pumps, it maintains different pressure conditions on the suction and discharge sides. When pumping stops, that operating difference can diminish as the circuit settles. The formerly low side can therefore show a higher pressure without anyone adding refrigerant.
FJC's explanation of static pressure describes high- and low-side pressures equalizing in a resting automotive system. This is a different measurement from the pressures observed during a cooling-performance test. The system needs time to settle; an immediate shutdown snapshot is not automatically a stabilized reading.
A/C Pro's gauge FAQ specifically explains that its gauge can enter the red/high area when the car is not running or as the compressor cycles off. That describes the tool's intended operating context. It neither proves that your charge is correct nor rules out a cooling fault.

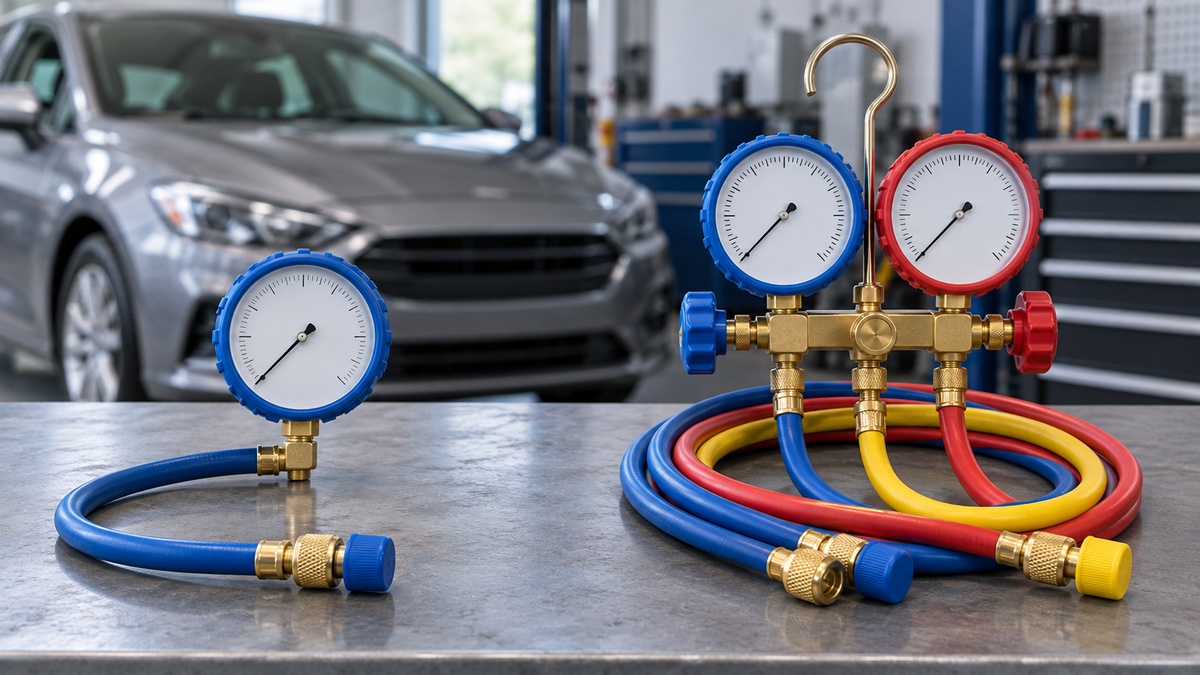

A red region printed on a single low-side dial also differs from the red-cased high-side gauge on a manifold set. The housing color identifies the instrument's role; it does not mean every reading on that instrument is excessive. Our guide to what to check when selecting a manifold gauge set addresses tool suitability. Buying another gauge still does not establish a diagnosis.
Temperature explains pressure, but does not count refrigerant
For a pure refrigerant such as R134a, liquid and vapor together at equilibrium have a saturation pressure tied to their temperature. Chemours' R134a property tables describe that relationship. The implication is that a pressure reading is not an inventory of pounds or ounces: different amounts can share the same saturation pressure while both phases remain present.
That explanation has conditions. A recently operated circuit may not have a uniform temperature, and an unknown or contaminated refrigerant cannot simply be assumed to follow a pure-refrigerant table. FJC also distinguishes the temperature of components under the hood from weather-service temperature. Ask which temperature and operating state accompanied the reading before treating two pressure photographs as evidence that the charge changed.
There is consequently no single engine-off number that certifies every vehicle as properly charged. Nor does a higher reading on a warmer occasion, on its own, show that more refrigerant is present. The service question is whether the measurement fits its test conditions and whether the system delivers the required performance.
Three situations that call for different next steps
The alarming reading was taken only after shutdown
If the only concern is a stopped-system color reading, first have its meaning checked against the gauge instructions and the vehicle's service information. There is no demonstrated reason to remove refrigerant from that observation alone. If cooling was satisfactory, describe that too; if it was poor, the pressure explanation does not resolve the separate performance complaint.
When cooling changes specifically between driving and waiting in traffic, use our guide to car AC that cools on the road but warms at idle to organize that symptom. Do not substitute an engine-off reading for an assessment while the original problem is occurring.
Cooling is requested, but the compressor's response is uncertain
An illuminated AC button records a request, not proof of effective pumping. HELLA's compressor guidance describes clutchless, externally controlled compressors whose displacement depends on a control valve. A turning pulley or the absence of a clutch click is therefore not a universal pass/fail test.
Ask the shop to identify the compressor design and compare the requested operation with its actual response. Control data, electrical checks and pressure behavior may lead to different repairs. A confirmed control fault calls for the appropriate control repair; an internal compressor diagnosis needs supporting findings. Neither replacement should be authorized solely because one gauge stayed red.
An appropriate operating test also shows abnormal pressures
This needs professional investigation, not an adjustment toward a generic colored band. HELLA's system-check tables consider both pressures and outlet temperature. They list different possible causes, including condenser airflow problems and excess charge for some high-pressure patterns, and electrical or compressor faults for some equal-pressure patterns during a cooling test.
Ask which findings distinguish those possibilities on your vehicle. An airflow defect needs airflow correction and a performance recheck. A control or compressor defect needs its corresponding repair and verification. If charge correction is proposed, ask how the manufacturer-specified amount will be established. Equal pressures at rest and equal pressures during a failed cooling test are not interchangeable evidence.
Bring a useful record to the appointment
Provide the vehicle details, cooling complaint, recent service or additives, and any existing gauge photograph with its units and measurement conditions. Do not connect tools or reach near belts, fans or hot parts to collect extra evidence. Ask the technician to record the diagnosis, what it supports, and what remains uncertain.
EPA explains the limitations of topping off: the amount already present is unknown, both undercharging and overcharging impair performance, and adding refrigerant does not permanently repair a leak. A properly performed recovery and recharge can establish the specified charge, but the shop should still explain why that work is relevant to the complaint.
The refrigerant also needs identification from the vehicle information, not from the pressure. Our vehicle refrigerant and service-application checks explain that separate decision. Do not vent refrigerant to lower a reading. EPA's MVAC servicing requirements cover refrigerant recovery, the venting prohibition for R134a and R1234yf, and Section 609 certification and approved equipment for paid service.
After any correction, request a performance check under the vehicle manufacturer's conditions, including the original complaint. A needle moving into green after the compressor starts is not, by itself, proof of correct charge or a successful repair.
