A low temperature difference between return and supply air does not, by itself, prove that your AC needs refrigerant. Before approving a recharge, ask where and how the temperatures were measured, what the indoor moisture conditions were, and how airflow was checked. The reading can justify further investigation without identifying the repair.
This guide concerns a ducted central air conditioner or heat pump operating in cooling mode. It helps you interpret a service report; it does not provide charging instructions or a universal target for every system.
The number needs a measurement context
Illustrative scenario: A homeowner receives a service recommendation saying the AC's temperature split is below 20°F and refrigerant should be added. Assume that is the only explanation provided. The equipment model, measurement locations, humidity, airflow and refrigerant-side findings are unknown. This is a hypothetical decision, not a Freonwell customer visit or a documented diagnosis.
A useful reply is: “What target applies under these conditions, and what evidence identifies the reason for the difference?” You are asking for the link between the observation and the proposed work. A low reading should not be ignored, but it should not have to carry the whole diagnosis.
Why the same AC does not always produce the same split
In cooling, the air-side temperature split is the return-air temperature minus the supply-air temperature. Both are dry-bulb air temperatures—the ordinary temperature part of the measurement. It is not the difference between the outdoor weather and your thermostat setting.
The coil removes heat while also condensing water from sufficiently moist air. Temperature reduction is sensible cooling; moisture removal is latent cooling. A dry-bulb difference alone does not describe both jobs. This is why moisture conditions belong in the interpretation, even if the immediate complaint is “the air is not cold enough.”
Fieldpiece's explanation of target Delta T uses return-air dry-bulb and wet-bulb conditions to calculate an expected split. Wet-bulb is an air-property measurement that reflects moisture as well as temperature. The target is therefore tied to the entering air, rather than automatically being 20°F.
Ask which equipment instructions or applicable diagnostic method supplied the target. For staged or variable-capacity equipment, also ask what operating condition was being assessed. A number copied from another system's report is not an acceptance criterion for yours. If the house reaches its temperature setting but remains damp, the related question is why a house can stay humid after the AC reaches its setting.
First check what the thermometers actually measured
Air temperature or the grille's surface?

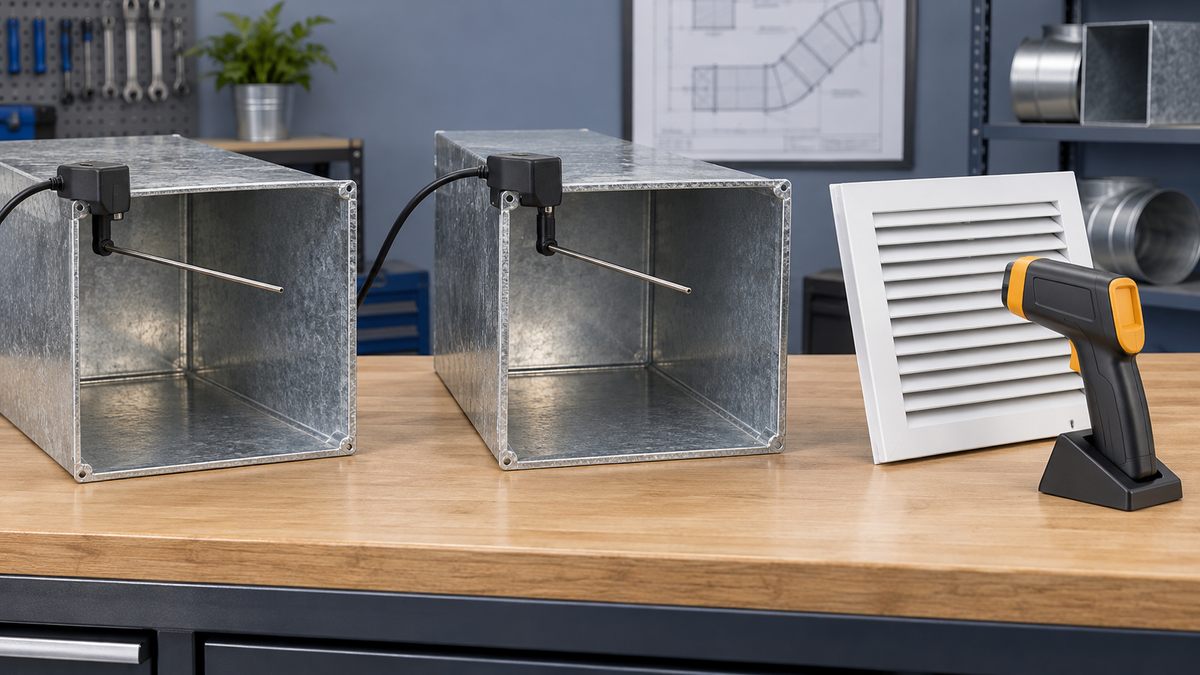

An infrared thermometer aimed at a register measures a surface, not the air passing through it. Fluke's HVAC thermometer application note makes this distinction explicitly. Such a scan can help compare surfaces, but it is not automatically interchangeable with a temperature probe sampling the air.
If one reading came from a thermostat and another from an infrared scan of a metal grille, ask the contractor to verify the air temperatures with an appropriate instrument. A disagreement between those readings may call for better measurement before it calls for a replacement part.
Across the equipment or across the house?
Fieldpiece recommends taking supply and return measurements at the air handler where possible. Measurements at room vents include the distribution path. DOE's guidance on metal ducts explains that ducts in unconditioned spaces can gain or lose heat through their walls and lose conditioned air through leaks.
That means a room-register result can prompt a different investigation from a result at the equipment. If performance at the air handler is appropriate but delivery to a particular room is poor, ask about that duct path, insulation and leakage. A temperature difference between locations suggests where to investigate; it does not establish a duct defect on its own.
A bigger split is not automatically better cooling
Airflow and temperature change have to be interpreted together. A high split can indicate too little air passing through the coil. Colder air at one register does not establish that enough conditioned air is reaching the rooms.
Fieldpiece's airflow diagnostic guidance pairs temperature checks with assessment of airflow restrictions. It explains why a fixed temperature rule misses latent load, and why an out-of-range result can involve airflow or refrigerant charge.
When the reported split is high and airflow seems weak, ask for the airflow findings and the location of any restriction. A confirmed filter, blower or duct problem needs its corresponding correction, followed by reassessment. Do not close registers or change installer fan settings to make the split look larger. If ice is visible, stop cooling and arrange service; see airflow problems and refrigerant faults that can freeze an AC coil.
A small split needs a cause, not an automatic top-off
Once the measurement context and airflow are sound, a split below the applicable target can indicate reduced cooling capacity. Undercharge is one possibility; it is not the only one. The DOE/NREL air-conditioner diagnostic guide also discusses refrigerant-flow restrictions and warns that an apparently normal split can occur with other refrigerant-side faults. Its older diagnostic tables are not universal targets for current equipment.
Ask which additional findings distinguish a shortage from another problem. Equipment-specific refrigerant assessment may involve pressures and line temperatures interpreted together. Superheat and subcooling concern the refrigerant circuit; they are different measurements from the air-side split.
If the findings support undercharge, request the explanation for the shortage and the proposed leak investigation or repair. If they support a restriction, ask which component or section is implicated and how that conclusion was reached. If the evidence remains inconclusive, the next authorized step can be further diagnosis. Adding refrigerant does not verify either explanation.
What the completed service record should show
Request the measured air temperatures and locations, the relevant indoor conditions, the target used, the airflow assessment, the cause found and the correction made. Then ask how operation was checked afterward under appropriate conditions. Comparing an unexplained “before” number with an unexplained “after” number leaves the original uncertainty intact.
Refrigerant work belongs with qualified personnel. EPA's Section 608 guidance includes attaching gauges and adding or removing refrigerant among covered technician activities. You do not need to open panels, drill ducts or connect gauges to ask for an understandable report.
For the illustrative homeowner, neither the cause nor the outcome is established. The immediate decision is to obtain the missing evidence, then approve work that addresses the finding—not simply to make a thermometer difference equal 20°F.
